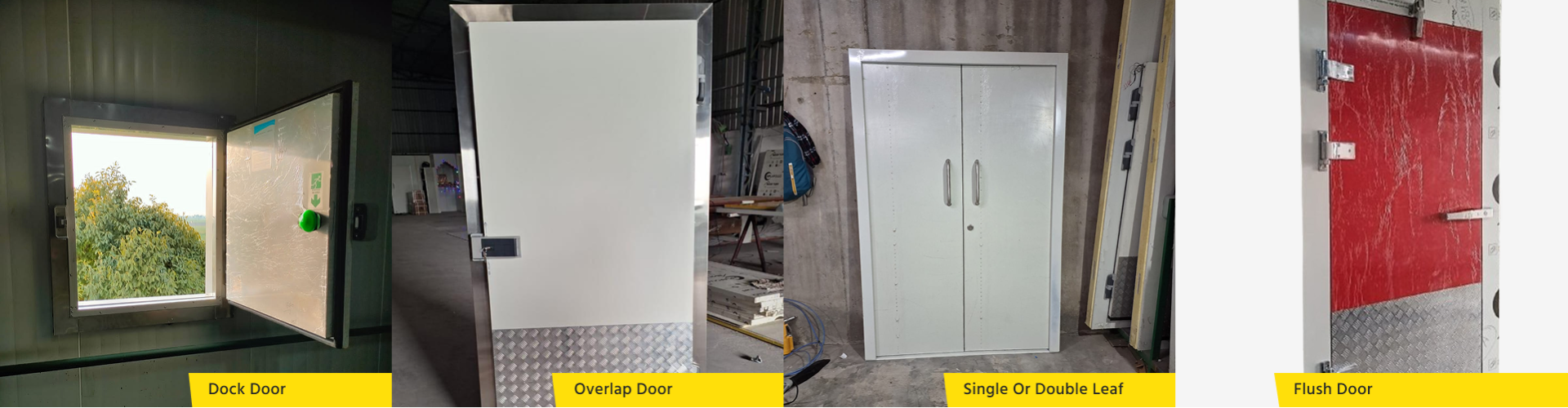

Type Of Door

•Sliding Door (Manual or Automatic)

•FLUSH Door

•Overlap Door

•Dock Door

•Single or Double Leaf

Door Size

•Standard: Customizable (e.g., 900mm x 2000mm up to 3000mm x 3000mm)
•Custom sizes available as per cold room design.

Door Leaf Construction

•Outer Material: Pre-painted galvanized steel / Stainless Steel / Aluminum (as required)
•Inner Core: Polyurethane Foam (PUF)
•Thickness: 60mm / 80mm / 100mm / 120mm
•Density: 40 ± 2 kg/m³
•Fire Resistance

Frame?

•Powder-coated GI / Stainless Steel SS304 / Aluminum
•Integrated heating elements (for freezers room)

Gasket & Sealing

•High-quality EPDM / PVC gaskets for airtight sealing
•Magnetic or compression-type gasket
•Optional: Heated gasket for freezer applications

Operating temperature?

•Chiller Rooms: +2°C to +8°C
•Freezer Rooms: -18°C to -30°C
•Blast Freezers: up to -40°C (with door heaters)
